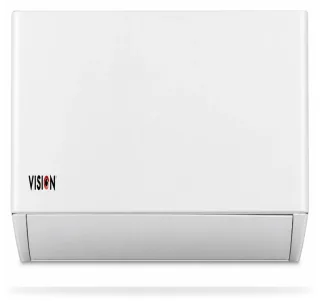

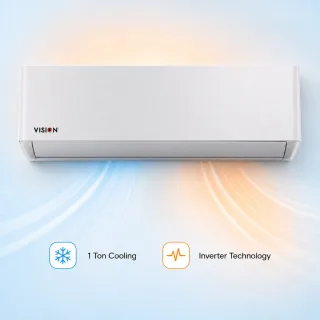

Vision 1 Ton Split Type Inverter AC -VSN-12K-INV32 4D Ult

Vision 1 Ton Split Type Inverter AC -VSN-12K-INV32 4D Ult is a 1.0 ton wall-mounted split air conditioner rated at 12000 BTU/Hr. Because the compressor is inverter driven, it slows down instead of switching off once the room reaches the set temperature, so the cooling stays steady and power draw is easier to control.

Rated cooling output is 3517 W with a working range of 600~3700 W, letting the unit scale its capacity to the load. Rated power input is 1524 W at 6.76 A and 50 Hz, and the wide 187~265V voltage range keeps this Vision 1 Ton Inverter AC running through supply fluctuations.

Inside sits a GMCC rotary compressor with R32 refrigerant. The condenser uses inner groove copper tube (7mm) with an Al golden fin coating for corrosion protection. Indoor noise is 43 dB and outdoor noise 55 dB. The Vision VSN-12K-INV32 4D Ultra also carries 3D air flow, a hidden display, a dust filter, a sleep mode timer and a remote control, though Wi-Fi control is not available.

For fitting, the indoor unit measures 860×345×265 mm at 8.5 kg net and the outdoor unit 853×349×602 mm at 21.5 kg net. Shoppers comparing a Vision 12000 BTU Inverter AC should look at BTU rating, refrigerant type, coil material and noise figures side by side.

Highlights

• 1.0 ton cooling capacity, 12000 BTU/Hr
• Inverter split type air conditioner
• 3517 W cooling output with a 600~3700 W range
• 1524 W rated power input, 6.76 A, 50 Hz
• 187~265V wide voltage range
• GMCC rotary compressor with R32 refrigerant
• Inner groove copper tube (7mm) condenser
• Al golden fin
• 43 dB indoor noise, 55 dB outdoor noise
• Hidden display, dust filter and sleep mode timer
• 3D air flow with remote control
• 8.5 kg indoor net weight, 21.5 kg outdoor net weight

Warranty Information

• Compressor: 12 Years
• Spare Parts / PCB: 4 Years
• After Sales Service: 4 Years
• Cleaning Service: 1 Year

Important Usage Instructions

• Get both units fitted by a trained technician and leave clear space around the outdoor unit for airflow.
• Set the temperature around 24-26°C and let the inverter compressor hold it instead of switching the unit on and off repeatedly.
• Wash the dust filter every two to three weeks so the 12000 BTU/Hr capacity is not choked.
• Keep windows and doors shut while cooling, and draw curtains against direct sunlight.
• Turn the breaker off during storms or long absences, and wait a few minutes before restarting after a shutdown.

ব্যবহার ও রক্ষণাবেক্ষণ নির্দেশনা

• Indoor ও outdoor দুটি unit দক্ষ technician দিয়ে বসান এবং outdoor unit-এর চারপাশে বাতাস চলাচলের জায়গা রাখুন।
• Temperature 24-26°C-এ রাখুন; বারবার বন্ধ-চালু না করে inverter compressor-কে কাজ করতে দিন।
• প্রতি দুই-তিন সপ্তাহে dust filter ধুয়ে নিন, না হলে 12000 BTU/Hr ক্ষমতা কমে যায়।
• এসি চলার সময় দরজা-জানালা বন্ধ রাখুন এবং সরাসরি রোদ আটকাতে পর্দা টেনে দিন।
• ঝড়-বৃষ্টি বা দীর্ঘ অনুপস্থিতিতে breaker বন্ধ রাখুন; বন্ধ করার কয়েক মিনিট পর আবার চালু করুন।

Vision VSN-12K-INV32 4D Ultra কোথায় পাবেন?

Official warranty-সহ Vision VSN-12K-INV32 1 Ton Inverter AC পাবেন LM Electronics-এ। LM Electronics Vision-এর Official Dealer। সকল Air Conditioner দেখতে ক্লিক করুন।
